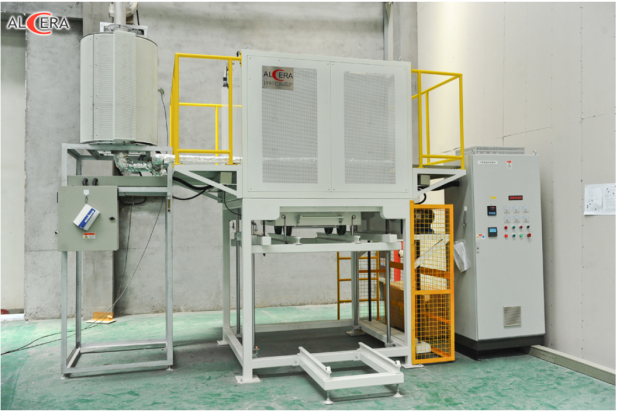

The RB-18 series trolley-lift high-efficiency sintering furnace is a type of furnace that simultaneously achieves degreasing, sintering, and waste gas treatment. It adopts a trolley-lifting structure and a double-layer furnace body design. The furnace lining uses high-temperature ceramic fiberboard produced by our company, with raw materials imported from Japan for alumina polycrystalline fiber. The multi-layer design reduces heat loss and improves heating efficiency. Specialized backing insulation material ensures a low surface temperature for the furnace body.

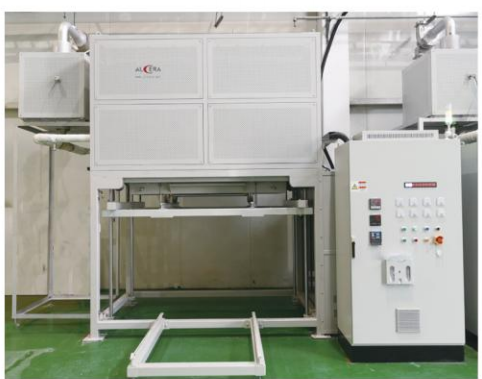

Using silicon molybdenum rods as heating elements, the structure is rationally arranged, resulting in a uniform temperature field. Temperature is controlled by instruments and recorded by a paperless recorder, meeting the sintering requirements of various process curves. The control system and main circuit are integrated into a single electrical control cabinet, with all control instruments mounted on the cabinet for intuitive observation and convenient adjustment.

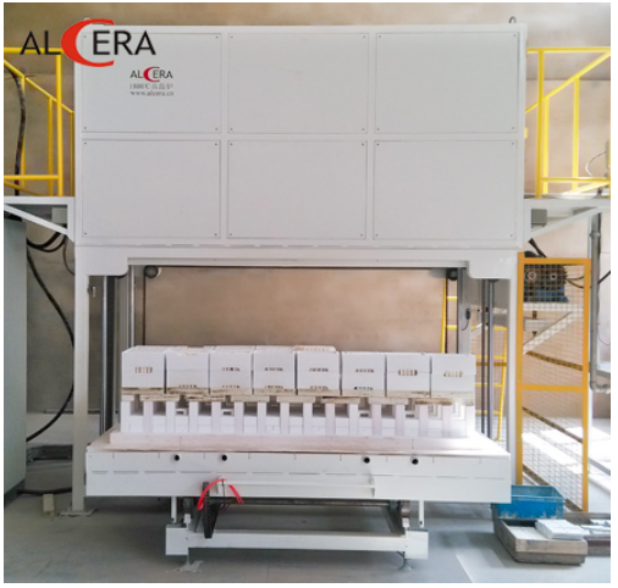

The corundum-mullite supports on the trolley are pre-embedded, with a reasonable structure to ensure the load-bearing capacity of the sintered products and prevent them from sinking. It also enables integrated degreasing and sintering and can be equipped with an air preheating device, truly achieving multi-functional integration.
■ Firing of fine ceramics, electronic components, magnetic materials, and target materials.
| Item\Model | RB-18-1505065 |
| Long-term Operating Temperature | 1700℃ (Max. 1730℃) |
| Power Supply | 380V±10%, 50Hz±5%, 160kW |
| Effective Furnace Dimension (Length×Width×Height) |
1500×500×650 mm |
| Overall Dimension (Length×Width×Height) |
Approx. 3700×3223×3361mm (Subject to actual dimension) |
| Atmosphere | Air |
| Furnace Body Material | Lightweight Ceramic Fiber |
| Heating Element | Molybdenum Disilicide Rod |
| Thermocouple | Type B Thermocouple |
| Temperature Uniformity | ±10℃ |
| (Tested in 1400×400×500mm uniform temperature zone, empty furnace state, holding at rated temperature for 2 hours, 9-point temperature measurement) | |
| Heating-up Time | 0~1700℃/4hr (Programmable Control) |
| Temperature Control Mode | Instrument + SCR Control |
