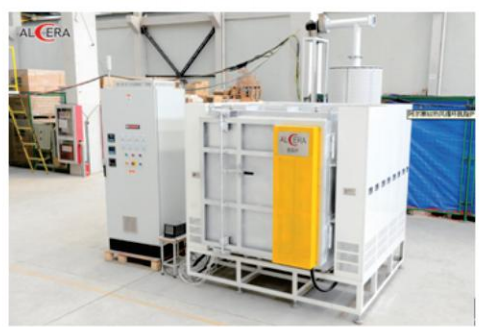

The RX-14 series degreasing furnace adopts a box-type single-door structure. The furnace insulation material uses lightweight ceramic fiber modules covered with imported 1600 alumina fiber blankets, ensuring cleanliness and no pollution.
Using resistance bands as heating elements, the furnace provides five-sided heating for more uniform temperature distribution. The main circuit employs closed-loop control via thyristor power regulation, with phase-shifting voltage adjustment and automatic current limiting, soft start, and soft shutdown functions, ensuring safety and reliability. Temperature is controlled by instruments, and data is recorded without paper. The control system and main circuit are integrated into a single electrical control cabinet, with all control instruments mounted on the cabinet for intuitive observation and convenient adjustment.
Equipped with an intake and exhaust system, the air entering the furnace can be preheated (optional) to ensure uniform furnace temperature. The intake and exhaust air volumes are adjustable to meet the processing needs of different organic matter contents. It also features a waste gas treatment device that directly treats the organic binders discharged during degreasing in an odorless and smokeless manner, making it an energy-saving, environmentally friendly, and highly efficient resistance furnace.
■ Before sintering, the product is degreased and dried, and the gas containing organic binders discharged during degreasing is completely combusted.
| Item\Model | RX-10-808080 | RX-10-404040 |
| Long-term Operating Temperature | 800℃ (Combustion temperature can be designed up to 1200℃) |
|
| Power Supply | 380V±10%, 50Hz±5%, Degreasing 60kW |
380V±10%, 50Hz±5%, Degreasing 15kW |
| Effective Furnace Dimension (Length×Width×Height) |
800×800×800 mm | 400×400×400 mm |
| Overall Dimension (Length×Width×Height) |
Approx. 2000×2000×2000 mm (Subject to actual dimension) | Approx. 1000×1000×1500 mm (Subject to actual dimension) |
| Atmosphere | Air | Air |
| Furnace Body Material | Lightweight Ceramic Fiber | Lightweight Ceramic Fiber |
| Heating Element | Resistance Heater Strip (5 sides) | Resistance Heater Strip (5 sides) |
| Thermocouple | Type K Thermocouple | Type K Thermocouple |
| Temperature Uniformity | ±10℃ (Tested in uniform temperature zone, empty furnace state, 9-point temperature measurement) | ±10℃ (Tested in uniform temperature zone, empty furnace state, 9-point temperature measurement) |
| Heating-up Time | 0~800℃/3hr (Programmable Control) | 0~800℃/3hr (Programmable Control) |
| Temperature Control Mode | Instrument + SCR Control | Instrument + SCR Control |
